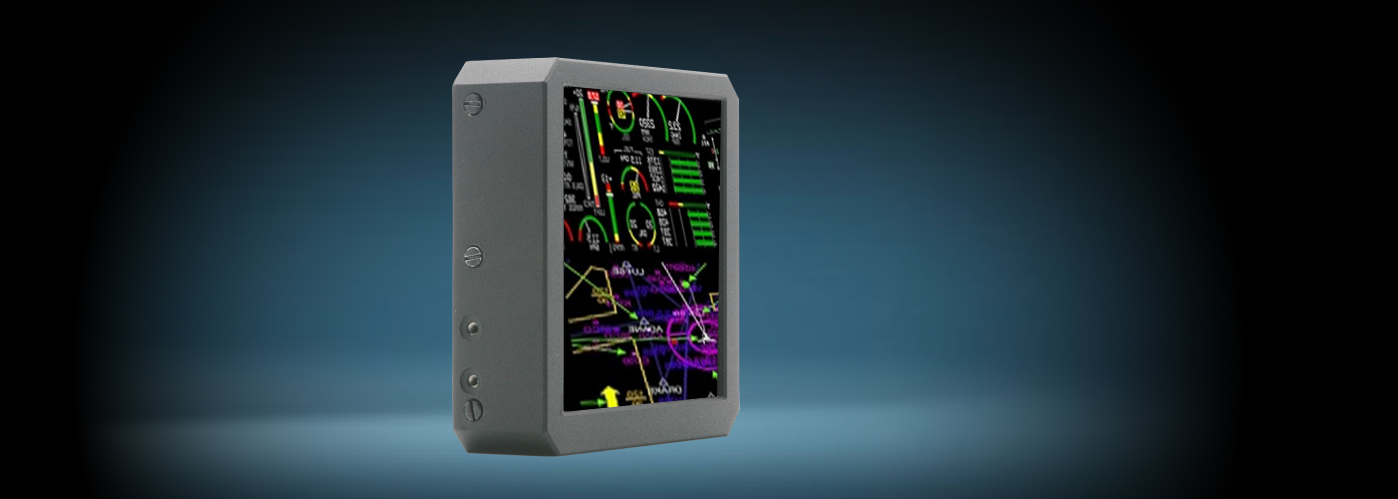

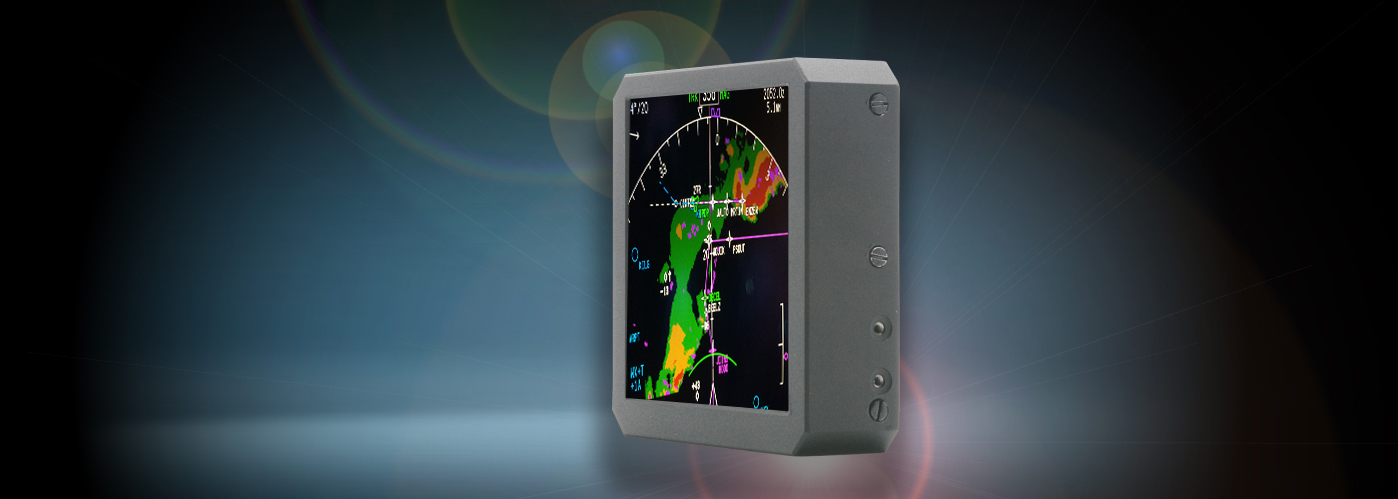

Avionics Display

iDisplays offers a wide range of displays for Avionics applications, we are specialised in the displays and graphics solution for the Avionics applications, we also undertake customisation to meet the specific technical and the environmental specifications of the customer requirements. The core part of the Avionics display is the optical characteristics of the display, we are capable of providing the required brightness, contrast ratio, NVIS /NVG compatibility (as per MIL-STD 3009), sun readability, EMI shielding, touch screen options to the display units as per the customer’s requirement making thus iDisplays an special partner option to any of the product development company worldwide.

Indus Displays Systems offers Avionics Displays, military grade displays including 3ATI displays, 5 x 5 Inch ATI Display, 6 x 6 Inch ATI Display & Square Displays designed with rugged durability, high visibility, and reliable performance.

In case if you are not able to find the display that you are looking for, please get in touch with us we can develop it for you.

Features of 3ATI & 4ATI

Display Size (ATI)
3 ATI
4ATI
Construction
Aluminium
Aluminium
Active Area (mm)
62 x 62
89.28 x 89.28
Resolution
480 x 480
640 x 640
Display Colors
262K (6Bit/color)
262K (6 bit/color) , 16.7M (8bit/color)
Brightness cd/m2
1000
1000
Backlighting type
LED
LED
Optical bonding AR Glass
YES
YES
EMI Shielding
YES
YES
Contrast Ratio
300:1
400:1
Viewing Angles (H/V)
Horizontal : 120°
Vertical : 120°
Horizontal : 160°
Vertical : 150°
Day night Mode
Yes
Yes
Input Interface
LVDS
LVDS
Supply Voltage, Vdc
+3.3;+12
+3.3;+12;+28
NVIS Compatibility
NVIS (Type II, Class B as per MIL-STD-3009)
NVIS (Type II, Class B as per MIL-STD-3009)
Operating temperature
-55 ~ +85°C
-55 ~ +85°C
Humidity
95% @ 40°C
95% @ 40°C
Vibration
Airplane mode: g rms/Hz 1.8 / 10-2000
Helicopter Mode: g rms/Hz 2.83 / 10-500
Ground vehicle mode: g rms/Hz 1.8 / 1-500
Airplane mode: g rms/Hz 1.8 / 10-2000
Helicopter Mode: g rms/Hz 2.83 / 10-500
Ground vehicle mode: g rms/Hz 1.8 / 1-500
Shock
(Single / Multiple) 15g / 6g
(Single / Multiple) 15g / 6g
Altitude
70000 ft
70000 ft

Features of 5 x 5,6 x 6 & 6 x 8

Display Size (Inch)
5 x 5
6 x 6
6 x 8
Construction
Aluminium
Aluminium
Aluminium
Active Area (mm)
127x127
201 x 126
Resolution
600 x 600
768 x 768
768 x 1024
Display Colors
262K (6bit/color) , 16.7M (8bit/color)
262K (6 bit/color) , 16.7M (8bit/color)
262K (6bit/color) , 16.7M (8bit/color)
Brightness cd/m2
1000
1000
1000
Backlighting type
LED
LED
LED
Optical bonding AR Glass
YES
YES
YES
EMI Shielding
YES
YES
YES
Contrast Ratio
600:1
700:1
500:1
Viewing Angles (H/V)
Horizontal : 160° / Vertical : 160°
Horizontal : 170° / Vertical : 170°
Horizontal : 160° / Vertical : 160°
Day night Mode
Yes
Yes
Yes
Input Interface
LVDS
LVDS
LVDS
Supply Voltage, Vdc
+28
+28
+3.3 ; 12 ; +28
NVIS Compatibility
NVIS (Type II, Class B as per MIL-STD-3009)
NVIS (Type II, Class B as per MIL-STD-3009)
NVIS (Type II, Class B as per MIL-STD-3009)
Operating temperature
-55 ~ +85°C
-55 ~ +85°C
-55 ~ +85°C
Humidity
95% @ 40°C
95% @ 40°C
95% @ 40°C
Vibration
Airplane mode: g rms/Hz 1.8 / 10-2000
Helicopter Mode: g rms/Hz 2.83 / 10-500
Ground vehicle mode: g rms/Hz 1.8 / 1-500
Airplane mode: g rms/Hz 1.8 / 10-2000
Helicopter Mode: g rms/Hz 2.83 / 10-500
Ground vehicle mode: g rms/Hz 1.8 / 1-500
Airplane mode: g rms/Hz 1.8 / 10-2000
Helicopter Mode: g rms/Hz 2.83 / 10-500
Ground vehicle mode: g rms/Hz 1.8 / 1-500
Shock
(Single / Multiple) 15g / 6g
(Single / Multiple) 15g / 6g
(Single / Multiple) 15g / 6g
Altitude
70000 ft
70000 ft
70000 ft
Outline Dimensions
153 x 153 x 75
204 x 200 x 103
192 x 238 x 26
