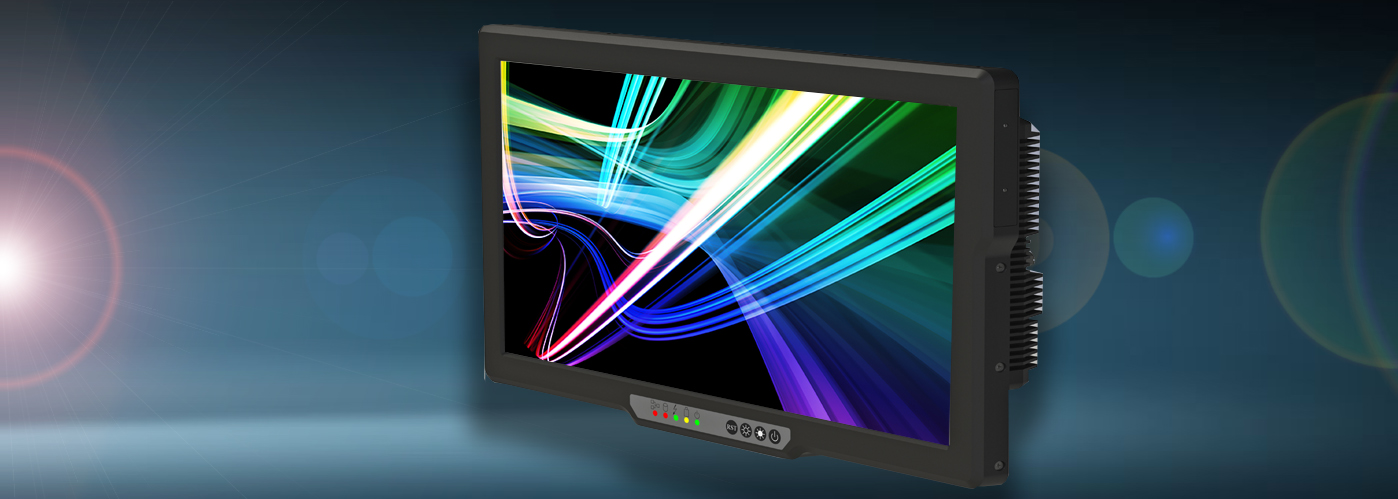

Rugged Displays

IDISPLAYS Rugged Displays Series (RugDis) has been designed and built to meet the most critical applications; our displays are designed for extremely harsh environment for use in demanding military applications that requires crystal clear graphics and needs support for various input interfaces. When it comes to military use only the most rugged technology will suffice. Our Rugged Displays are engineered to meet all military standards.

  • Display size varies from 3.5” to 55” (diagonal)
  • Pixel Resolutions from 640x480 VGA to 3840x2160 (4K) Quad HD
  • Touchscreens: Resistive, Projected Capacitance (PCAP), Infrared (IR), Optical Multi-Touch (OMT)
  • Video Inputs: Analog RGB VGA, DVI, HDMI, Display Port, SDI/3G-SDI, Composite Video, Display Link™
  • Certification to Military and Industrial Environmental and EMC Standards
  • Sealed and Backlit Front Control Buttons
  • RS232, RS484, USB, and Ethernet Remote Control

Environmental Specification

  • Temperature : MIL-STD-810F (Method 501.4 / 502.4)
  • Humidity : MIL-STD-810F (Method 507.4)
  • Vibration : MIL-STD-810C (Method 514.2)
  • Shock : MIL-STD-810C (Method 516.2)
  • EMI/EMC : MIL-STD-461F Standards
Model No ID-065 ID-104 ID-121 ID-150 ID-190 ID-210 ID-240
Screen Size 6.5 Inch 10.4 Inch 12.1 Inch 15 inch 19 inch 21 inch 24 inch
Resolution 1024 x768 1024 x768 1024 x768 1024x768
1600x1200
1280 x1024 1600 x1200 1600 x1200
Aspect ratio
4:3
Brightness
450 Nits 600 Nits 500 Nits 600 Nits 650 Nits 1200 Nits 1000 Nits
Contrast ratio 800:1 800:1 1000:1 1000:1 600:1 800:1 1000:1
Backlight
LED WITH 100000 HRS MTBF
Colors
262K/16.7M
View angle
80/80/80/80 (Typ.)(CR≥10)
Environment
Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
Mounting Type
Rack mount / Panel Mount / Console mount
Touch Screen
Resistive / capacitive / IR Type ( optional for all the models)

NOTE : If you are not able to find the display size that you are looking for in our website please contact us and we will built it for you without any NRE charges and MOQ terms
